Architecture

Describe your system. OrgGen draws it.

C4 model, microservices, cloud infra — describe your system, we draw it. Mermaid C4 & PlantUML export.

See the example

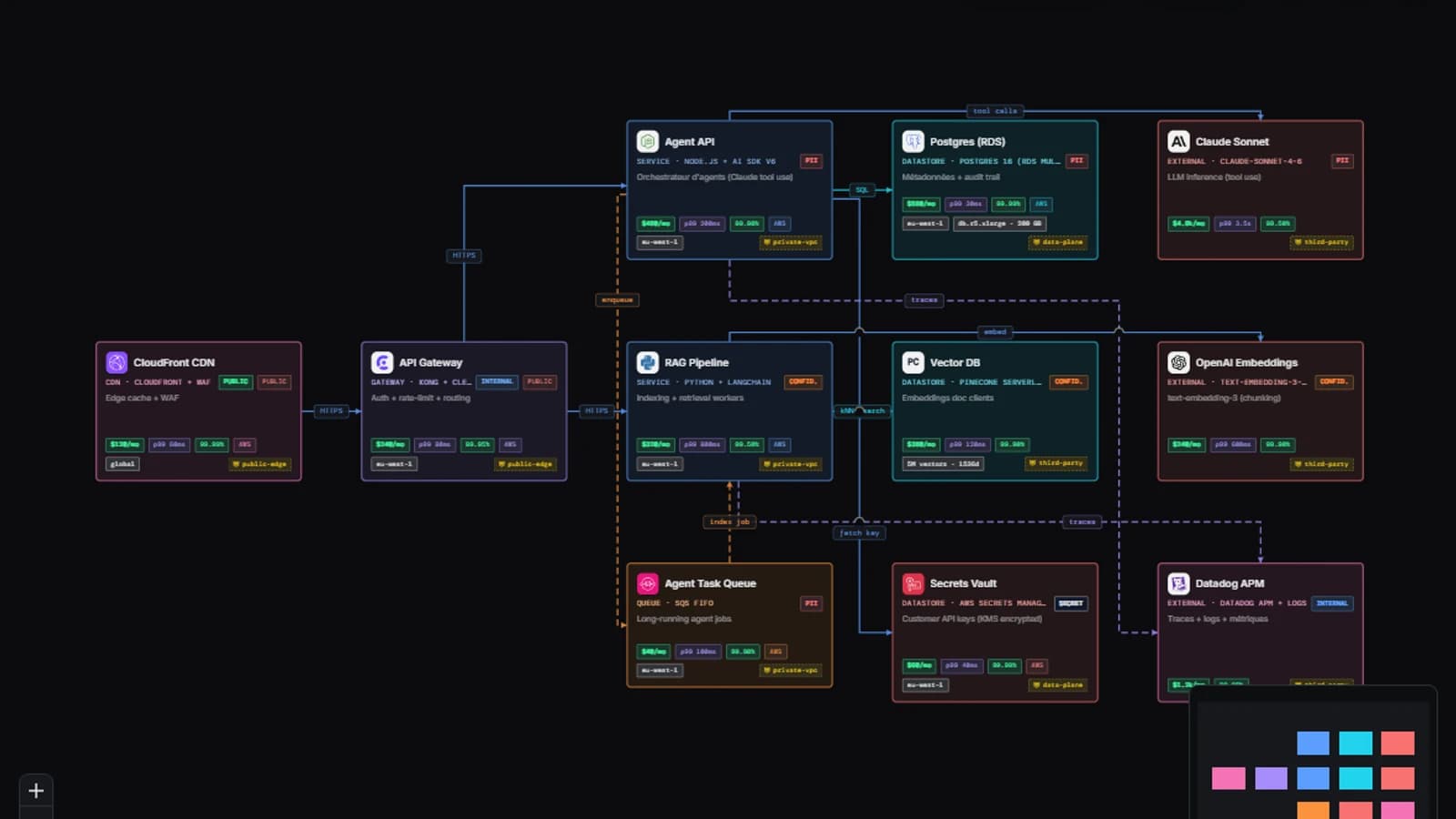

OrgGen C4 architecture diagram: services, flows, costs, and trust boundaries
ScreenshotReal capture of the canvas, dark theme, French example project.

Architecture

  • 01

    10 ready-made archetypes

    Services, datastores, queues, gateways, lambdas, batch, CDN, cache, networks, external — each type has its own icon, shape, and matching connectors. You describe, OrgGen chooses.

  • 02

    5 connection types

    Sync (HTTP/gRPC), async (queue), DB (R/W), event (stream), data (S3/files). Each type has its own visual style so the diagram reads at a glance.

  • 03

    Cloud metadata

    Cloud provider (AWS / GCP / Azure / on-prem), region, capacity, public access. Everything is stored, everything is exportable, everything feeds into generation.

  • 04

    Mermaid C4 & PlantUML export

    Generate Mermaid for your README, PlantUML for your Confluence wiki. Lossless round-trip: you can re-import the exported file later.

  • 05

    Drivable via MCP

    Connect Claude Code to your OrgGen project over MCP. Your agent adds a microservice or changes a dependency by reading your code — and can also create a task or raise a decision on this architecture, without leaving the IDE.

  • 06

    Collaborative canvas

    Every edge stays strictly orthogonal (never diagonal). Deterministic auto-layout, manual drag & drop, real-time sync between collaborators. Several people can edit the same schema.

Use cases: say it, get it

  • Prompt

    Model my back-end: API Gateway → 3 microservices (Auth, Catalog, Orders) → Postgres + Redis

  • Prompt

    C4 level-2 diagram for an e-commerce app with CDN, SQS queues, and Lambdas

  • Prompt

    Document my AWS infra: VPC, 2 private subnets, RDS Postgres, ALB, ECS Fargate

  • Prompt

    Add a Redis cache in front of the Catalog service and a Kafka broker between Orders and Billing

Ready to draw your system?

Describe it in natural language, OrgGen produces an editable, exportable C4 model.
